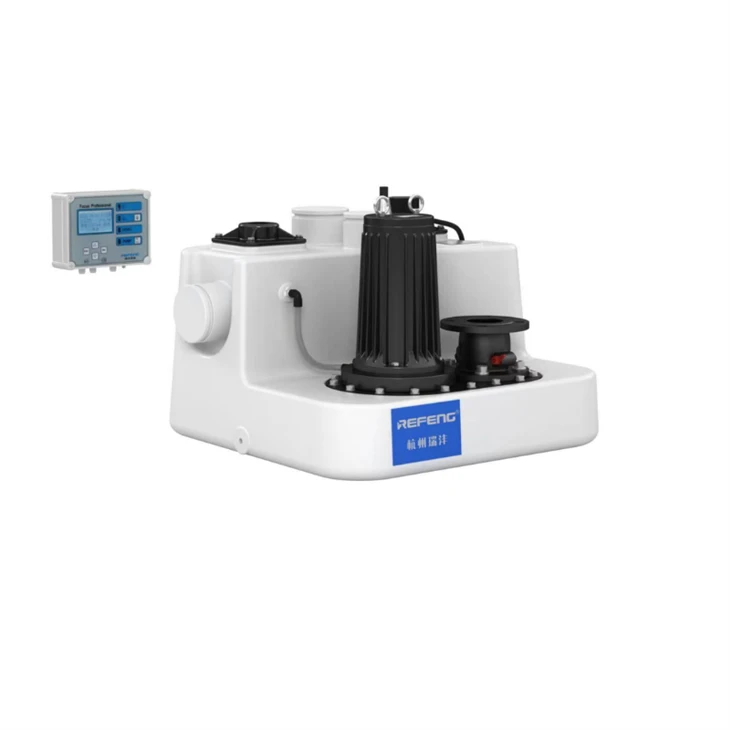

50L Compact Sewage Lifting Station SPX50-1100B
Compact Wastewater Lifting Pump Station for Residential and Commercial Applications
The SPX50-1100C 50L compact sewage lifting station is a fully enclosed wastewater pumping system designed for efficient sewage collection and automatic discharge in areas where gravity drainage is not possible.
With a 50-liter effective tank capacity, a powerful 1.1kW submersible sewage pump, and a compact space-saving design, this sewage lifting station is ideal for basement bathrooms, villas, commercial buildings, restaurants, and other low-level drainage applications.
Manufactured in China with reliable components and strict quality control, the SPX50-1100C provides a practical solution for modern wastewater management projects.
Key Features of SPX50-1100B Sewage Lifting Station
✅ Compact and Space-Saving Design
The integrated structure combines the wastewater tank, sewage pump, controller, sensors, and check valve into one complete system, saving installation space and reducing installation complexity.
✅ Fully Automatic Operation
Equipped with a micro air pressure sensor as the main level control and a rod-type float switch as auxiliary protection, the system automatically starts and stops according to wastewater levels.
✅ Strong Pumping Performance
The built-in 1.1kW submersible sewage pump delivers reliable performance with:
Rated flow: 25 m³/h
Maximum flow: 40 m³/h
Rated head: 10 m
Maximum head: 14 m
Suitable for various residential and commercial wastewater lifting requirements.
✅ Excellent Anti-Clogging Performance
The vortex impeller design provides excellent solid-passing capability with a maximum passage size of 50mm, helping reduce clogging risks during operation.
✅ Durable Materials and Long Service Life
Main components are manufactured using corrosion-resistant materials:
Pump housing: SUS304 stainless steel
Impeller: HT200 cast iron
Shaft: 2Cr13 stainless steel
Tank: LDPE high-density polyethylene
The IP68 protection grade motor ensures safe operation in wet environments.
Applications
The SPX50-1100C compact sewage lifting station is widely used for:
Residential Applications
Basement bathrooms
Villas
Private houses
Underground kitchens
Laundry rooms
Commercial Applications
Restaurants
Hotels
Shopping centers
Office buildings
Public facilities
Other Applications
Underground drainage systems
Remote wastewater collection points
Renovation projects where gravity drainage is unavailable
Product Specifications
Pump Performance
| Parameter | Specification |
|---|---|
| Model | SPX50-1100B |
| Pump Type | Submersible sewage pump |
| Impeller Type | Vortex impeller |
| Rated Flow | 25 m³/h |
| Maximum Flow | 40 m³/h |
| Rated Head | 10 m |
| Maximum Head | 14 m |
| Maximum Solid Passage | 50 mm |
| Pump Speed | 2900 rpm |
Electrical Data
| Parameter | Specification |
|---|---|
| Rated Power P2 | 1.1 kW |
| Input Power P1 | 1.5 kW |
| Voltage | 220V |
| Frequency | 50Hz |
| Rated Current | 7A |
| Motor Protection Grade | IP68 |
| Insulation Class | F |
| Starting Method | SD |
| Operating Mode | S3 50%, 1 min |
Tank Information
| Parameter | Specification |
|---|---|
| Tank Material | LDPE |
| Effective Capacity | 50L |
| Top Inlet Capacity | 50L |
| 180mm Side Inlet Capacity | 30L |
| Outlet Connection | DN65 PN10 Flange |
| Tank Structure | Fully enclosed |
Control System
| Parameter | Specification |
|---|---|
| Main Level Sensor | Micro air pressure sensor |
| Auxiliary Sensor | Rod-type float switch |
| Pressure Display Range | 0-500mm |
| Sensor Cable Length | 5m |
| Power Cable Length | 5m |
| Controller Protection | IP54 |
Materials
| Component | Material |
|---|---|
| Pump Housing | SUS304 |
| Impeller | HT200 |
| Shaft | 2Cr13 |
| Mechanical Seal | SIC/SIC |
| Collection Tank | LDPE |
Package Includes
The standard package includes:
Sewage lifting pump station
Submersible sewage pump
Wastewater collection tank
Automatic controller
Check valve
Float switch
Air pressure sensor
Installation accessories
Technical Advantages
Reliable Automatic Wastewater Management
The dual-level monitoring system ensures stable operation and provides additional protection against abnormal water levels.
Easy Installation and Maintenance
The compact integrated design reduces construction requirements and allows quick installation in limited spaces.
Suitable for OEM Projects
We provide customized solutions for:
Voltage and frequency requirements
Pump configurations
Control systems
Branding and OEM packaging
Why Choose Our Sewage Lifting Stations?
Professional Manufacturer
We specialize in wastewater lifting solutions, sewage pumps, and customized pumping systems with years of export experience.
Factory Direct Supply
Competitive factory pricing with flexible OEM support for distributors, contractors, and engineering companies.
Reliable Quality Control
Each unit is tested before shipment to ensure stable performance and customer satisfaction.
Global Applications
Our sewage lifting systems are supplied to residential, commercial, and industrial projects worldwide.
Get a Quote for SPX50-1100B Sewage Lifting Station
Looking for a reliable 50L compact sewage lifting pump station supplier?
Contact us today for:
✔ Product catalog
✔ Technical drawings
✔ OEM customization
✔ Project quotation
✔ Distributor cooperation
We are ready to provide professional wastewater lifting solutions for your market
